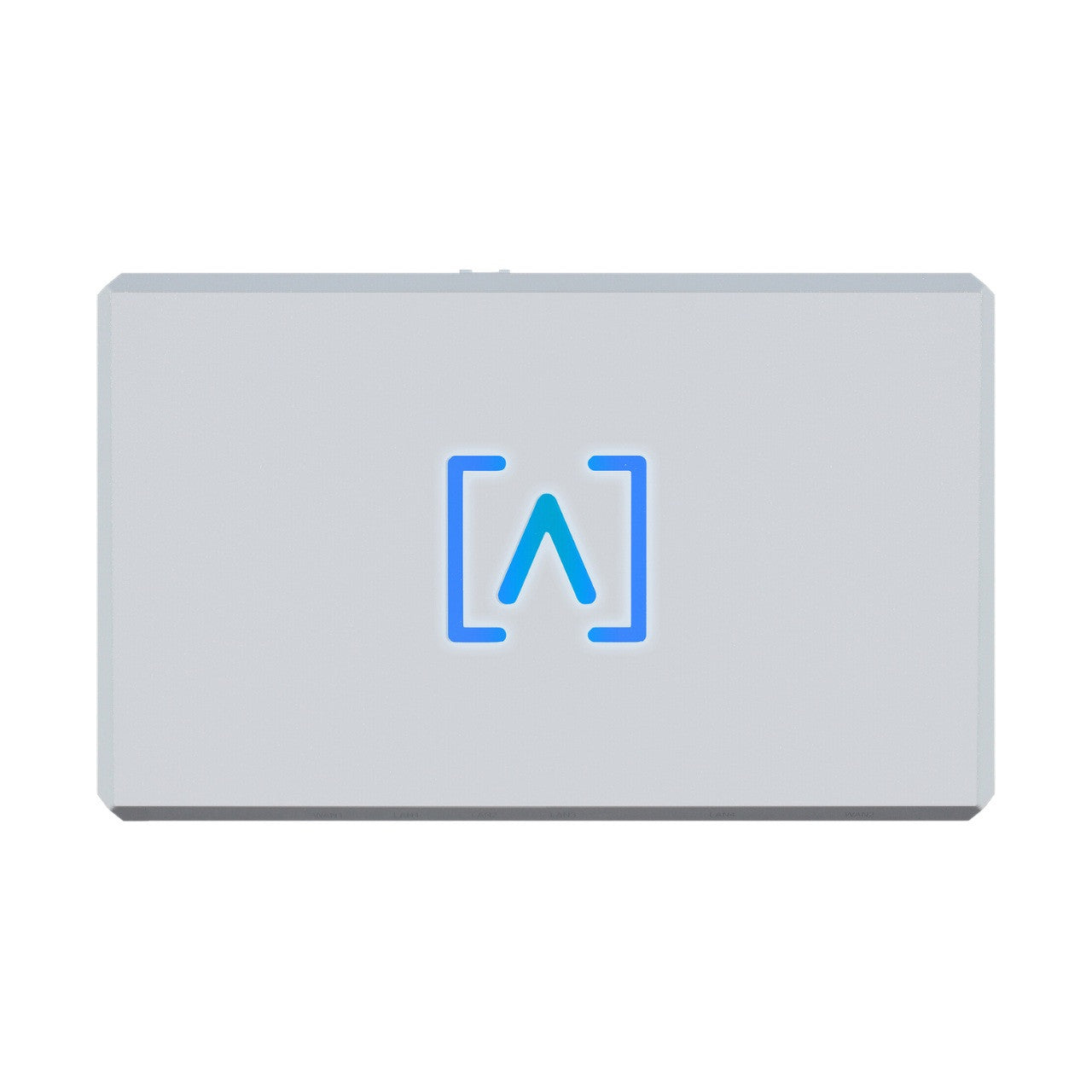

Alta Labs Route10

High-performance 10 Gbps Router

Alta Labs is thrilled to announce the release of the groundbreaking high-performance 10 Gbps Router. Disruptively priced, it is the only 10 Gbps router in the market at this retail price point. Route10 completes the Alta Labs ecosystem, making it possible to build your entire network with Alta Labs products.

Power Over Ethernet

Route10 features PoE+ connectivity on ports 2 & 3. The router supports the 802.3at PoE+ standard and is backwards compatible with the 802.3af PoE standard. Power your Alta Labs Access Points and other devices that support 802.3at or 802.3af standards.

High Performance Connectivity

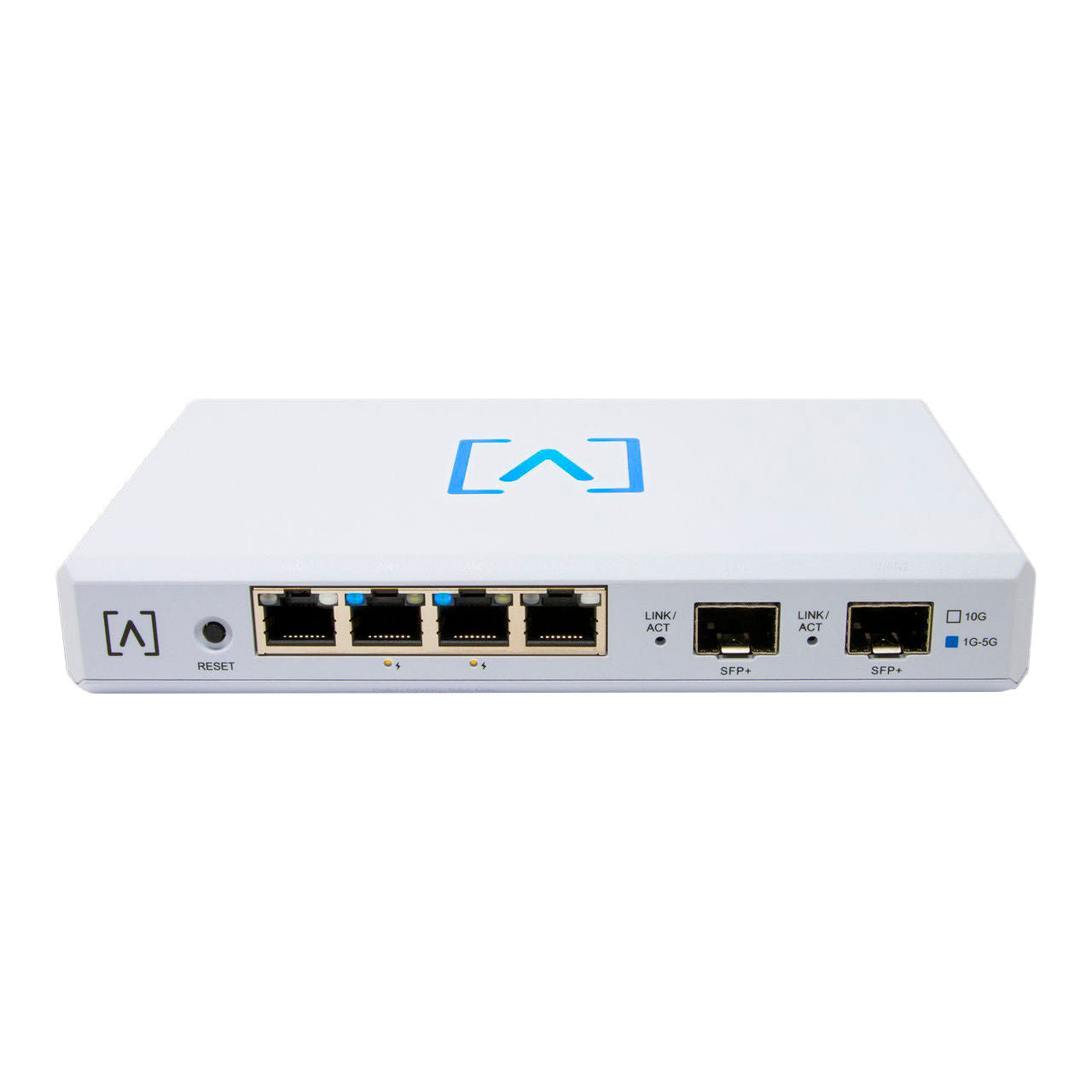

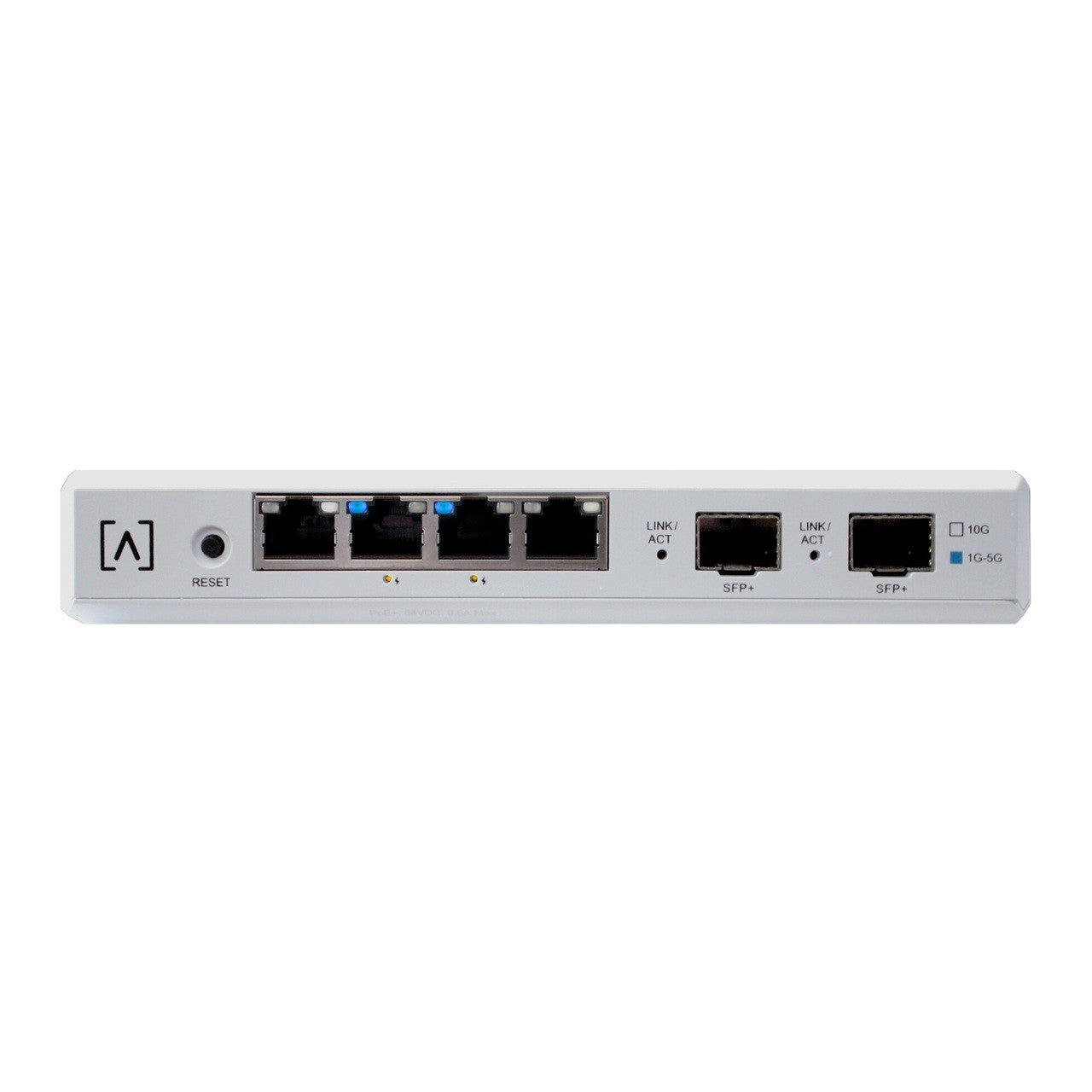

Designed for maximum performance, Route10 includes four auto sensing Ethernet ports that support up to 2.5 Gbps Ethernet connections (10/100/1000/2500 Mbps).

Route10 also provides two SFP+ ports for high-capacity fiber or copper connections of 1 Gbps, 2.5 Gbps, 5 Gbps, or 10Gbps.

Device Specific Exceptions

For instances where specific devices should not have their content filtered, adhere to a schedule, or bypass a hotspot, admins can allow individual devices to bypass the filter, schedule, and/or hotspot settings.

Mobile App Support

Monitor and manage your networks from
the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or sign in using your Google or Apple account.

Bluetooth Setup

COMING SOON

Bluetooth functionality is built into the Alta Labs Route10 router allowing for seamless setup using the Alta Networks mobile app.

Advanced Filtering - DPI Engine

Route10 has a powerful built-in Deep Packet Inspection (DPI) engine. Restrict access to websites, applications, or application types.

Filter settings are easily applied in the Alta Labs Control lTM management interface.

Select applications or application types in the Block Applications drop-down menu.
Block websites by typing in their domain names in the Block Domains field.

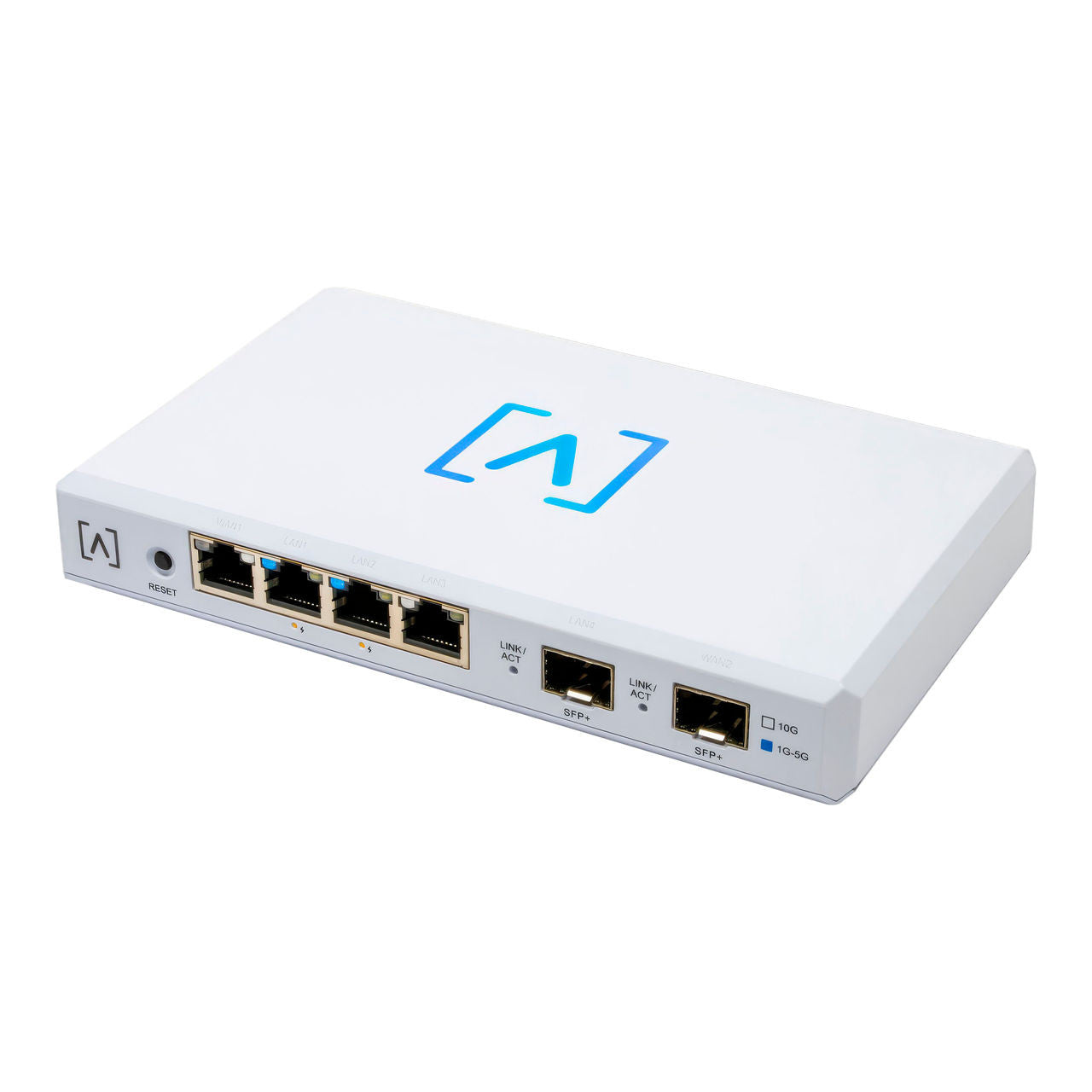

Hardware Features

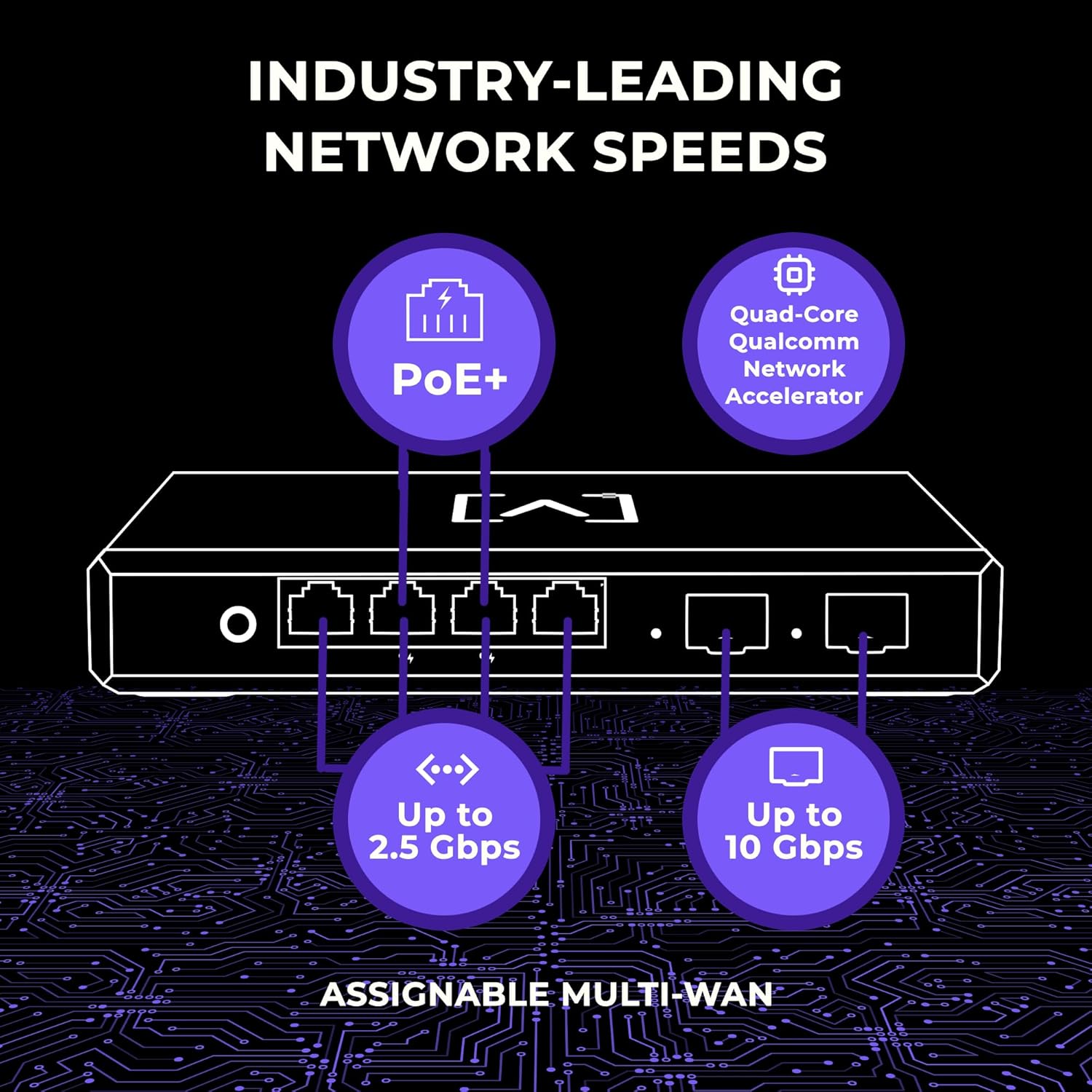

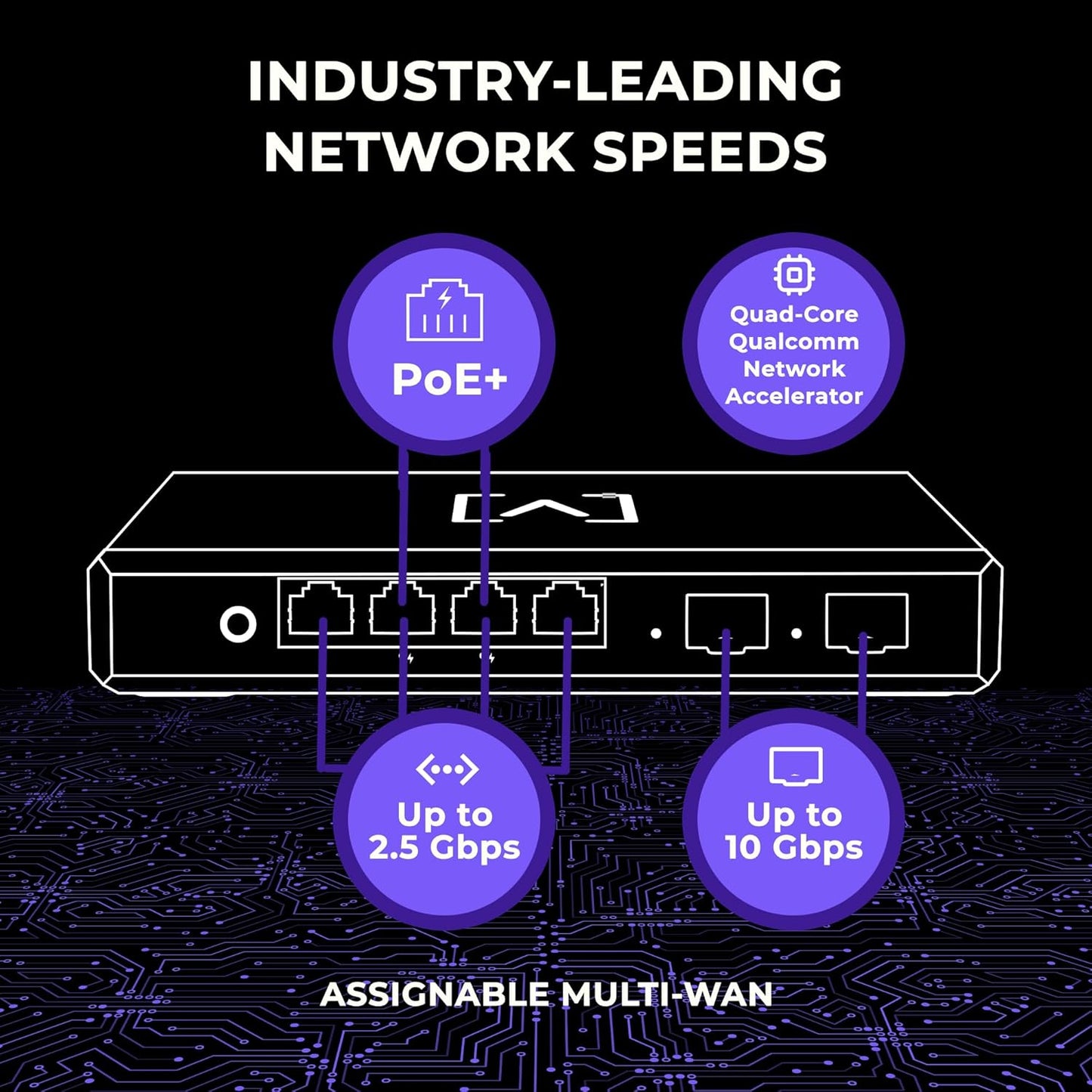

• Four 2.5 Gbps RJ45 Ports, 2 with PoE+
• Two 10 Gbps SFP+ Ports
• Quad-Core Qualcomm Network Accelerator
• Sleek, Compact Form Factor

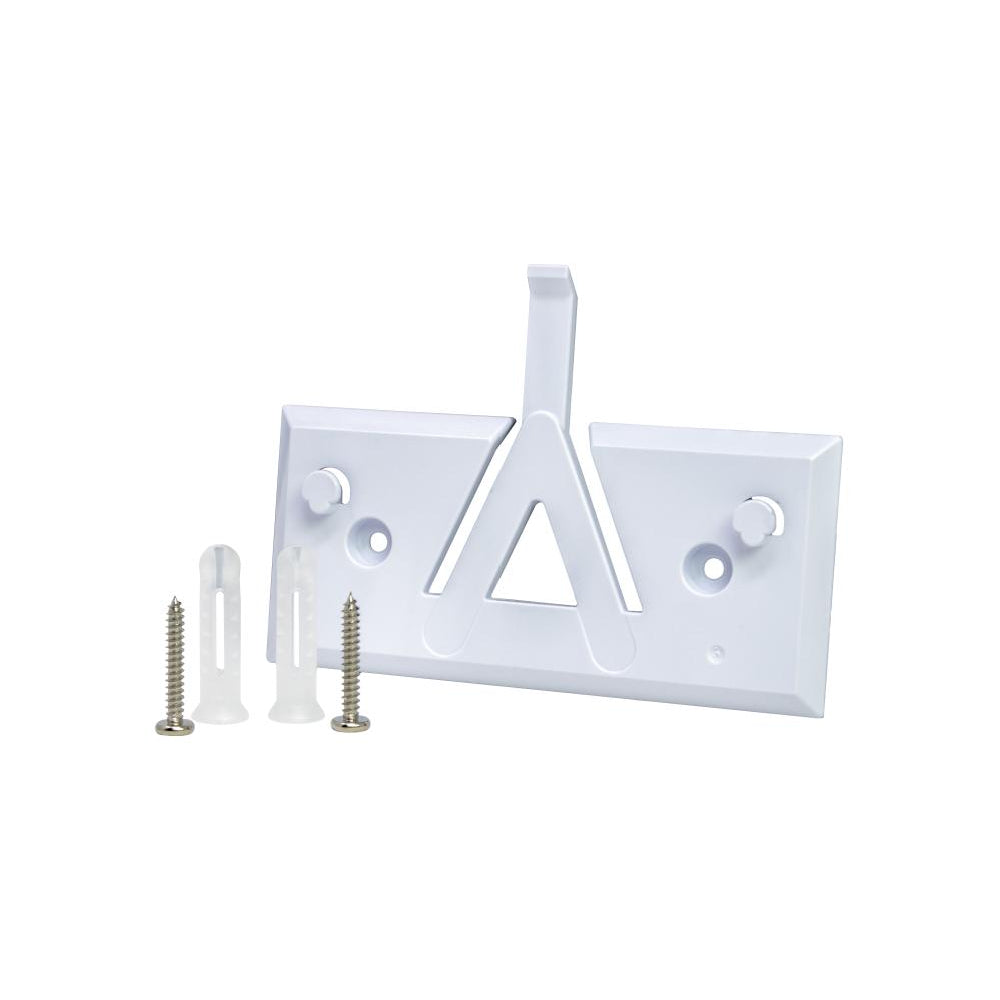

• Optional Rack Mount Accessory

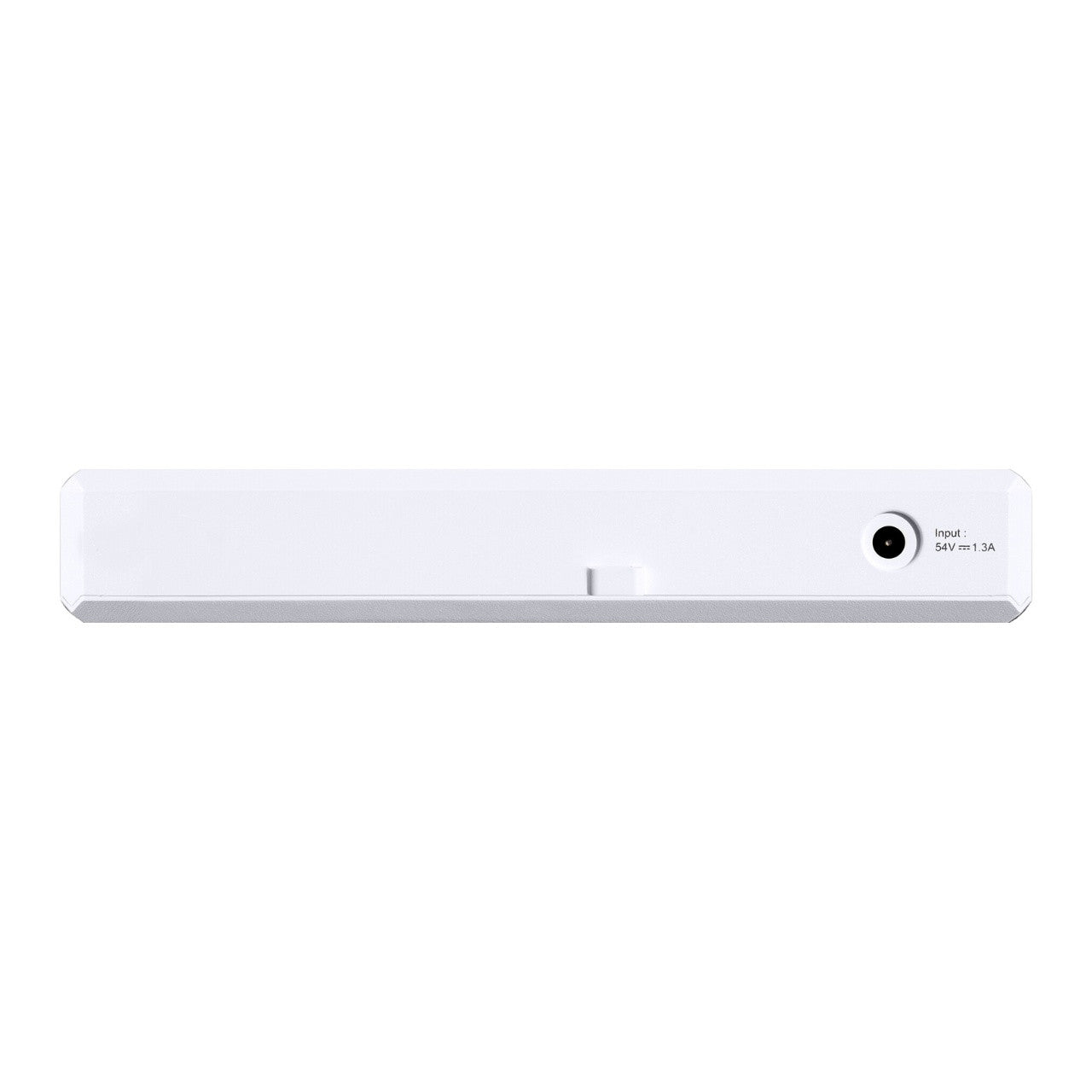

• Single Power Supply

Release Features

• Static IP, DHCP and PPPoE WAN Support
• VLAN and QoS Tagging on WAN Support
• Multiple VLAN and Subnet Support
• Alta Networks Mobile App Support
• DNS Repeater
• Firewall Configuration
• NAT Configuration (Source and Destination,Port forwarding)
• UPnP Support
• mDNS Forwarding
• Dynamic DNS Client
• Real-time Statistics Reporting
• RADIUS Server (for IPsec VPN)
• L2TP+IPSec Servers
• LLDP
• IPv6 Support

Post Launch Features

• Multi-WAN
• IPsec Site to Site
• L2TP+IPsec Client
• OpenVPN
• Dynamic DNS Client
• Static Routes
• Wireguard
• IDS/IPS
• IKEv2 Remote Access
• Advanced features: Match Source MAC, mark, DSCP
• NAT Schedule
• QoS for Low Latency
• DPI
• IGMP Snooping
