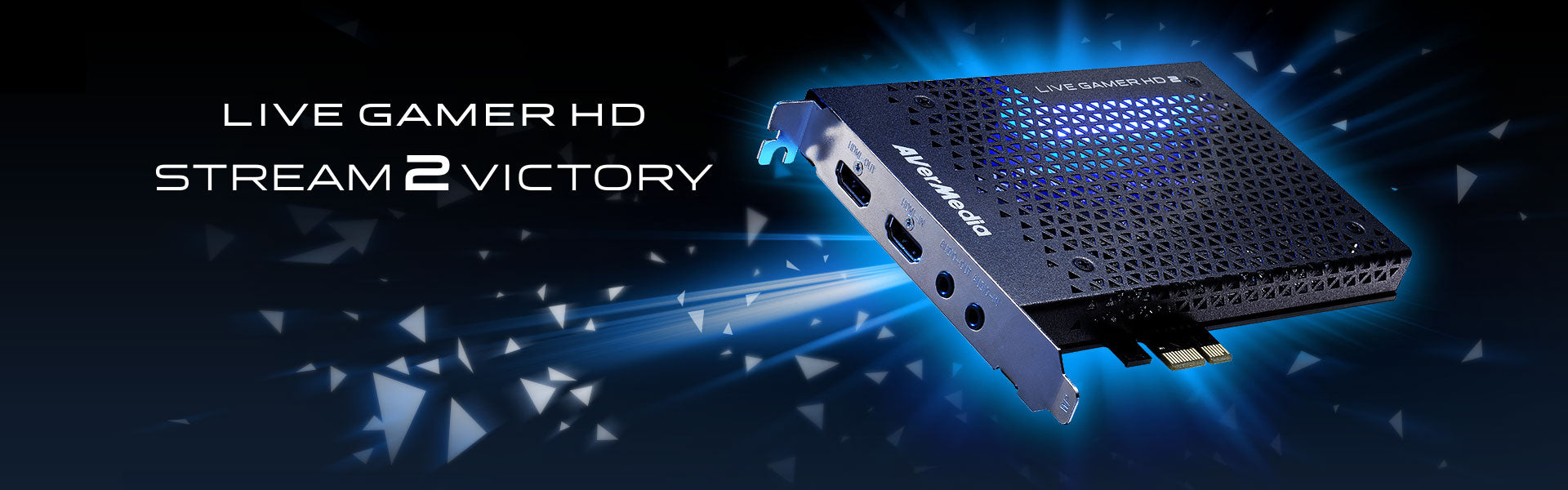

AVerMedia Live Gamer HD 2 - GC570

The second installment of Live Gamer HD has arrived! Packed with more power and style, Live Gamer HD 2 (LGHD2) is a plug-and-play PCIe-capturing beast that records and streams smooth, uncompressed, zero-lag gameplay in 1080p 60 fps.

1080p60 Uncompressed Video

LGHD2 is built for speed and quality. By capturing uncompressed videos, LGHD2 simplifies your PC operations and delivers smoother and sharper 1080p60 streaming.

Ready to Play: No Driver Needed

Tired of installing drivers? Don’t you worry. LGHD2 doesn’t require driver installation. Insert it into a PCIe slot and it’s ready to roll.

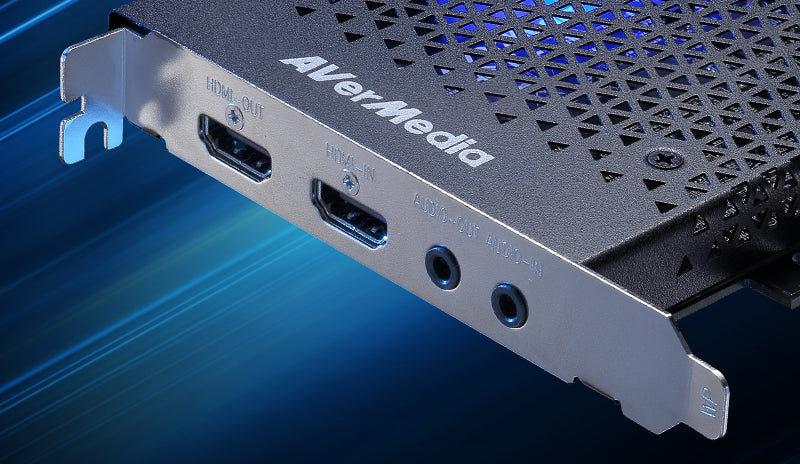

Flexible Audio Connection

Having more audio options is always a plus when it comes to capturing. Connect digitally via HDMI or analog via 3.5 mm ports, you can record audio from consoles, PCs, or even output to mixers for audio mixing—the flexibility is yours.

Compressed Video Output

Besides uncompressed videos, LGHD2 also delivers compressed videos that require less transmission bandwidth, so you can use multiple LGHD2s* to capture different sources at the same time.
*Multi-card-support software is required

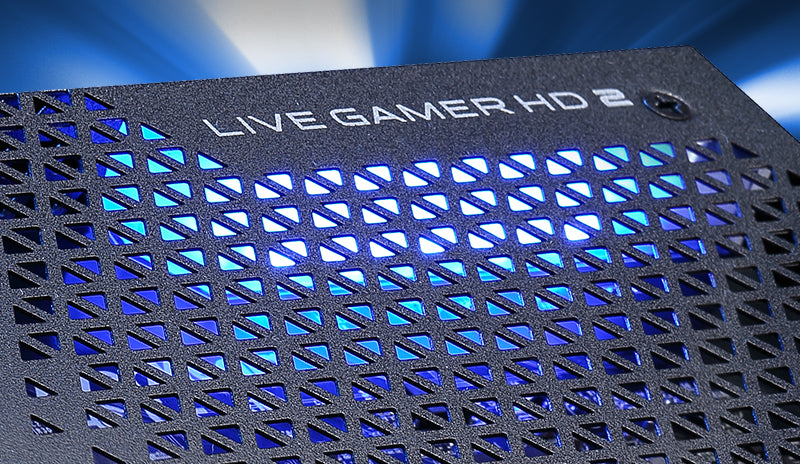

Get to Know the Design

If there’s a geometric shape that can represent gamers, it would be a triangle—a combination of vitality (a circle) and stability (a square) which outlines gamers’ charactistics. And based on this key element, we created a triangle metal mesh. Aside from its premium built quality and stylish design, it also provides excellent protection, ventilation, and allows the LED lighting to shine through.

Packaging

The same design is beautifully presented on LGHD2’s packaging. Engraved and cut by high precision laser, the triangle mesh looks just as astonishing on paper sleeve as on metal sheet. The design of the inner box is also carefully thought through. Its pattern and silvery blue finishing mimics the LED lighting as you slowly pull it out of the sleeve. It's a one-of-a-kind unboxing experience.

SPECIFICATIONS

Technical Specifications

• Interface:PCI-Express Gen 2 x1
• Video Input:HDMI
• Video Output (Pass-Through):HDMI
• Audio Input:HDMI / 3-Pole 3.5 mm Jack
• Audio Output (Pass-Through):HDMI / 3-Pole 3.5 mm Jack
• Max Pass-Through Resolutions:1080p60
• Max Record Resolutions:1080p60
• Supported Resolutions (Video input):1080p, 1080i, 720p, 576p, 480p, 480i
• Record Format:MPEG 4 (H.264+AAC) / MJPEG
• Dimension (W x D x H):125 x 151 x 21.5 mm (4.92 x 5.94 x 0.84 in)
• Weight:145 g (5.11 oz)

Notes:
1. LGHD2 does not support viewing/recording/streaming of HDCP protected signals

System Requirements (For dedicated streaming PC)

Operating system: Windows® 10 / 8.1 / 7 *

For 1080p60 Desktop:

- Intel® Core™ i5-3330 or above (i7-3770 recommended)
- NVIDIA® GeForce® GTX 650 / AMD Radeon™ R7 250X or above are recommended
- 4 GB RAM
Notes:
* Windows® 10 / 8.1 (Support UVC Protocol) Windows® 7 Requires driver installation
1. Warning: Live Gamer HD2 is not compatible with X99 (ASUS, MSI, ASROCK) motherboards
