[Pre-Order] Huawei OptiXstar S800E XGS-PON SFP+ ONU

[Pre-Order] Huawei OptiXstar S800E XGS-PON SFP+ ONU

Regular price $99.00 SGD
Regular price $300.00 SGD Sale price $99.00 SGD
Sale Sold out
Taxes included.
  • Pre-Order. Stock ETA 1st Nov 2024 onwards

GrabPay | Split into 4 Easy Payments with GrabPay

FREE DELIVERY on orders above $250.00


Important Notes:

  1. [Pre-order] Stock ETA: 1st November 2024 onwards.
  2. Only for use with active ViewQwest XGSPON Broadband subscriptions (3Gbps, 5Gbps & 10Gbps plans).
    Existing customers can recontract to these plans, or activate the 'Speed Upgrade' option via your
    ViewQwest Customer Portal
  3. Once you receive your unit, kindly call in to our Customer Service team to register and activate your SFP+ ONU.

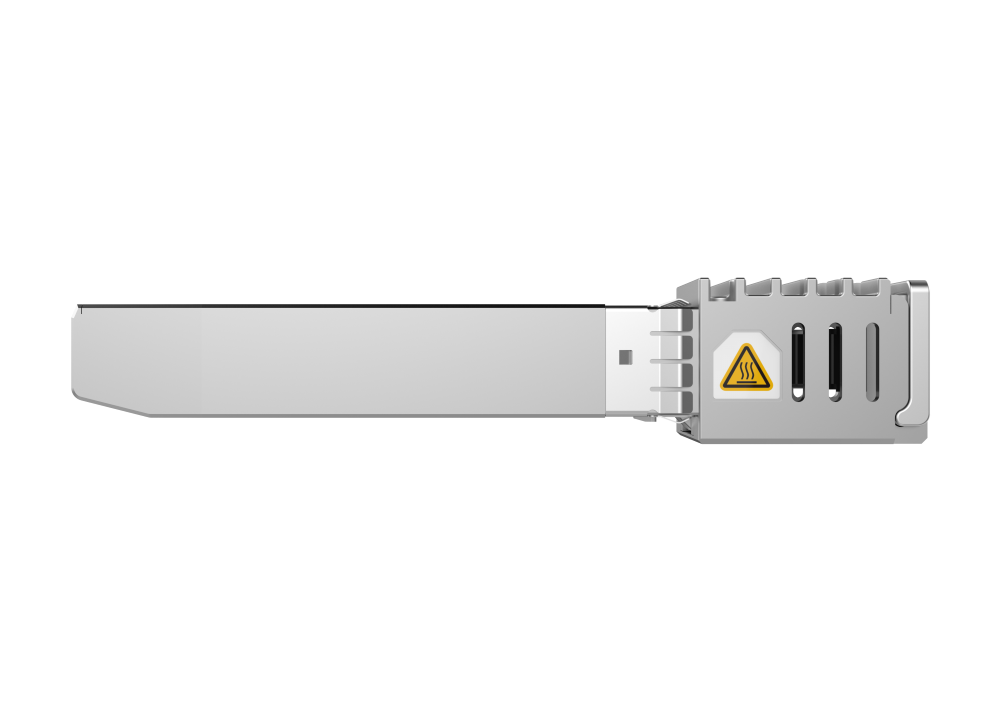

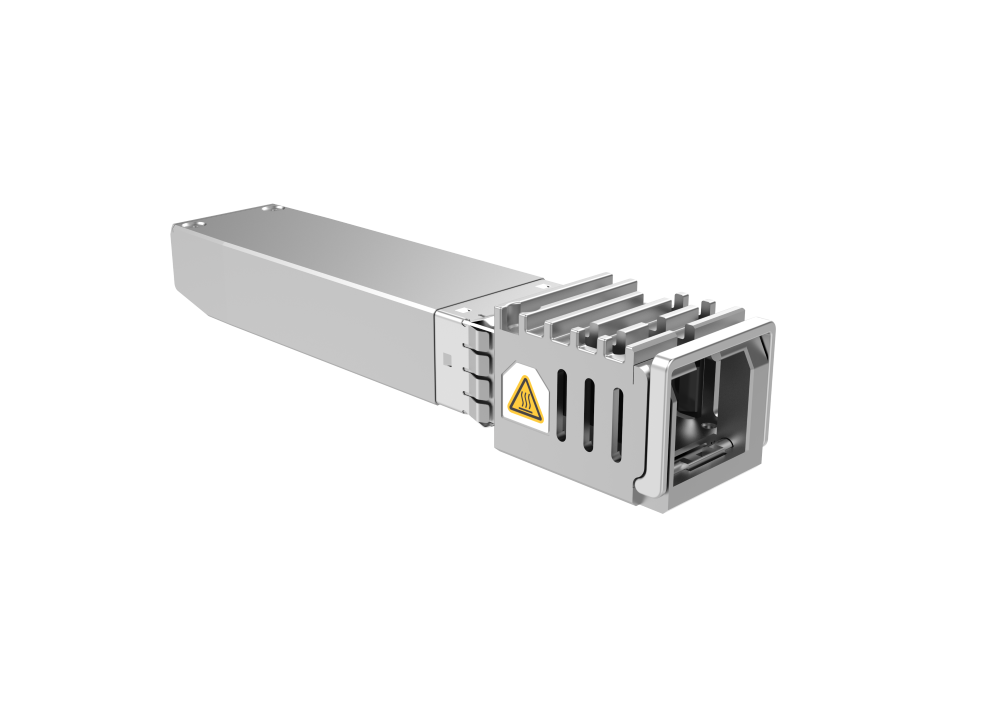

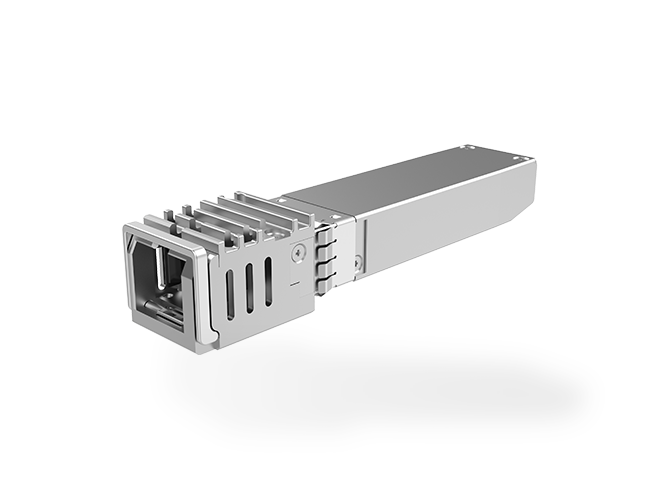

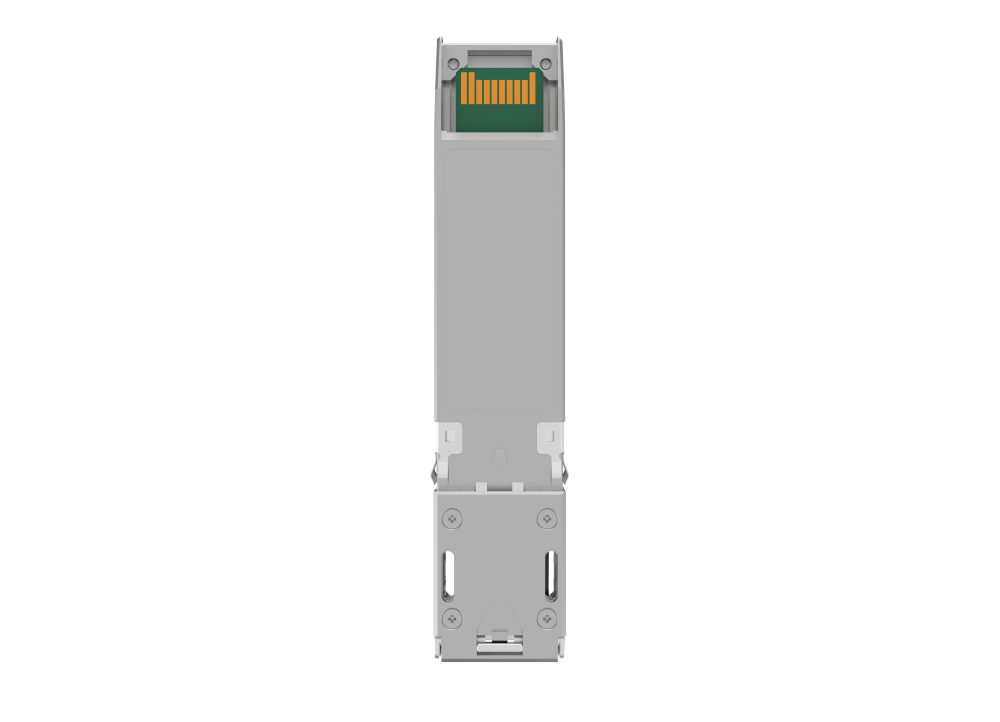

Huawei OptiXstar S800E is a miniature Optical Network Unit (ONU) that can be inserted into the Small Form-Factor Pluggable (SFP) port of a camera or Access Point (AP) to provide 10-Gigabit-capable Symmetric Passive Optical Network (XGS-PON) access, meeting video or wireless backhaul requirements.




data application services
End-to-end Networking
 Quality of Service Multicast Smart O&M
  • Ethernet port rate limitation.
  • 802.1p priority.
  • SP/WRR/SP + WRR.
  • Broadcast packet rate limitation.
  • Flow mapping based on the VLAN ID, port ID, or/and 802.1.
  • IGMP v2/v3 snooping.
  • MLD v1/v2 snooping.
  • Fast leave.
  • VLAN tag translation, transparent transmission, and removal for downstream multicast packets.
  • IGMP/MLD protocol packet rate limitation.
  • Variable-length OMCI messages.
  • Rogue ONT detection and self-regulation.
  • PPoE/DHCP simulation testing.



Parameters

Huawei OptiXstar S800E

Dimensions (H x W x D)

12.6 x 13.6 x 65 mm

Weight (Without Power Adapter)

Approximately 27 g

Operating Temperature

–40°C to +85°C

Operating Humidity

5–95% RH (non-condensing)

System Power Supply

3.3 V

UNI

GE/2.5 GE/5 GE/10 GE

NNI

XGS-PON

Maximum Power

Consumption*

2 W

XGS-PON Port

• Port type: SC/APC

• Standard compliance: ITU-T G.9807

• Receiver sensitivity: ≤ –28 dBm

• Overload optical power: ≥ –9 dBm

• TX optical power: 4–9 dBm

• Extinction ratio (ER): ≥ 6 dB

• Transmission rate: RX: 9.953 Gbit/s; TX: 9.953 Gbit/s

• TX wavelength range: 1260–1280 nm (Center wavelength: 1270 nm)

• RX wavelength range: 1575–1580 nm (Center wavelength: 1577 nm)
